Access Reader (Wiegand) AR-721 (K) 1 ar_721_k

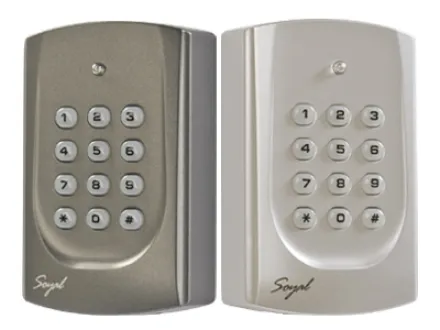

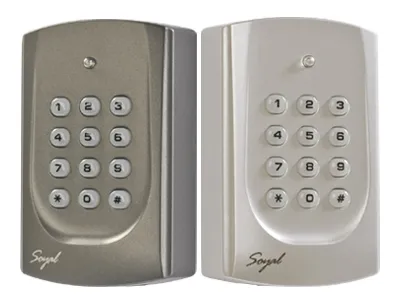

AR-721 (K)

Name
WG Keypad Reader
Description
*Reminder: Please make sure to change your programming code

Features
• Keypad Reader, the access mode can increase the use of passwords
• With an external keypad controller, to set the instruction in this controller
• Flexible to integrate with SOYAL or other access control system
• Interface of the Proximity Reader have WG and ABAII etc., depending on the controller to make adjustments
• 1 bicolor LED and 1 beeper for identification
• Builtin Watchdog to prevent system from hangin

Specification
Frequency	125kHz or 13.56MHz
Power Supply	9-24VDC
Standard	125kHz : EM Standard
	13.56MHz : ISO14443A
	ISO15693(Option)
	DESFire(Option)
	PSAM(Option)
	NFC(Option)
Reading Range	125kHz : 10-18cm
	13.56MHz : 3-8cm
Read / Write	125kHz : Read Only
	13.56MHz : Read+Write
Supported Tage	125kHz : EM 4001 / EM 4012
	13.56MHz : MIFARE Ultra Light(10)
	MIFARE Standard(S50)
	MIFARE Plus(P60)
Power Consumption	< 1W
Communication Interface	Wiegand
	ABA-II
	ASYNC
Data Transfer Rate	9600 bps(N,8,1)
Operating Temperature	-20℃ to +60℃
Keypad Material	Rubber
Indicator	1 Bi-Color LED & 1 Beeper
Protection Standard	No
Housing Material	ABS
Color	Gray / Silver
Dimensions(mm)	111(L)X77(W)X26(H)
Weight(g)	90±10
