Features
• Capacity to Built¬in HID module and HID compilable
• Capacity to Built¬in Voice module
• Built¬in Door Bell button
• Illuminated Keypad Design for more visual operation
• Weatherproof Design for outdoor use
• High security Biometrics Device, the finger is the only key
• RS¬485 and TCP/IP communication interface
• User capacity: 16,000; Event log: 32,000
• Fingerprint¬User capacity: 4,500~9000 (2~1 fingers for each user)
• High recognition rate of fingerprint reader(FRR): <0,1%
• Fingerprint Sensor can option the Optical Sensor(DO) or the Capasitive Sensor(MT)
• Auth. Speed (1:N): 0.97Sec.(DO) / 0.65Sec.(MT)
• Access modes: Finger only, Card and Finger, Card or PIN and Finger, Card and PIN and Finger
• Built¬in Watch Dog to prevent the halting
• 2 control modes: M4/ M8
• 63 auto¬open zone settings and 16 sets of Auto¬Open Zone editable
• WG port provides anti¬pass¬back function
• One more Exit Switch, Door Contact and Door Output to wiegand
• Built¬in Multi¬Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
• SOYAL software support for networking
• Easily integrated with SOYAL or others access control system
• Work attendance check: Push buttons to select Duty on/off work, Leave/Back and Overtime on/off Built¬in Real Time Clock & Anti¬Tamper functions
• Flexible to integrate with other equipments

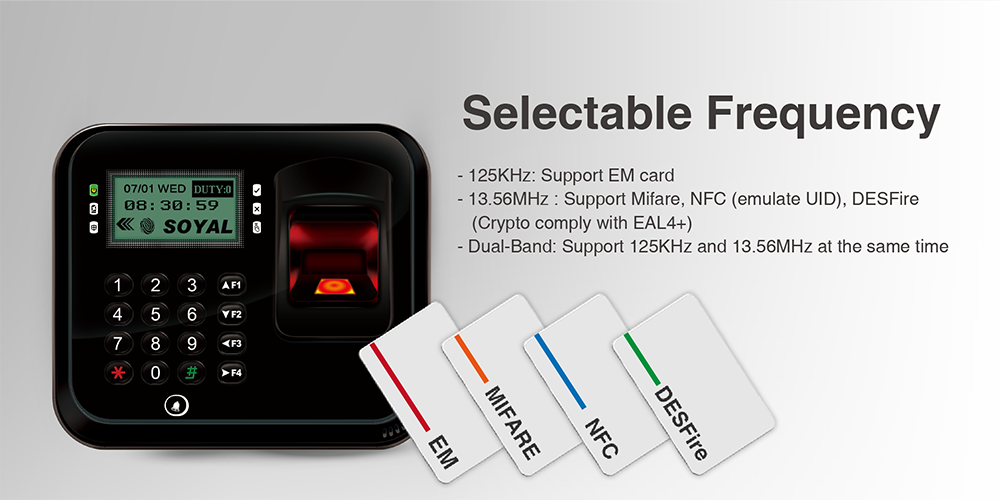

• 125kHz and 13.56MHz can be used simultaneously two channels
• Patent for new type of Relay, avoid vibrating to Mis¬Trigger
• RS¬485 serial output for various application and lift control
• Built¬in 16 set of Alarm and 120 days of Holiday setting
• Menu setting with LCD panel
• Coordinating with softwares for further application on access control, time attendance, payroll, anddoor/sensor image¬monitor function
• Auto¬lock of the keypad for 30 seconds after continuous failed operation by 3 times
• Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open
• Intelligent to shift for standalone or networking mode while system disconnected
• Support Fire buttons to make sure the fire happening, all doors open
• Supporting AR¬721_RB Relay Output module alternates traditional relay module, raise security, resist from stealing, and avoid wrong operation.
• 2 sets of Auto¬Open Zone editable by standalone operation
